Garden with Insight v1.0 Help: Start the program and open a garden

Tutorial progress: |-------------------

[If you are not already running Garden with Insight, check the Quick start section for information on starting the program.]

Look at the menu

The Garden with Insight main window is called the garden window. It has the menu items File, Edit, Run, Options, Window, and Help.

Open a garden file

Choose Open from the File menu. In the dialog that says "Save current garden?", click No. Choose the file tutorial.gdn in the directory where Garden with Insight was installed, then click OK.

Look at the tutorial garden

The tutorial garden will appear on the screen. It is a scene of a backyard garden with several raised soil beds. [If the scene you see is blank, choose Show backdrop from the Options menu. If the scene is still blank, either the tutorial file has been changed, or the bitmap file used by the tutorial file is missing. To choose a new backdrop picture, see How to change the backdrop picture.] You can only use one garden at a time in Garden with Insight, so whatever garden might have been open before has been closed.

Note that you can't maximize the garden window. You can minimize the window or make it smaller, but you can't make it any larger than the garden backdrop size or garden size inside it. You can change the garden size (and therefore window size) by using a larger backdrop bitmap or by turning off the backdrop and using a larger garden size (see the backdrop options window). A larger garden size will require more memory, though.

Look at the toolbar

At the top of the window, under the menu, is a toolbar containing several items.

gif/00000003.gif The expand/collapse button collapses the garden window to a small size or expands the garden window to full size. You can try clicking this button now.

gif/00000004.gifgif/00000005.gifgif/00000006.gifgif/00000007.gif The date buttons move the simulation ahead one week, month, day or year. Messages will occasionally appear in the area to the right of the date buttons.

gif/00000008.gif The first drop-down list box under the date buttons is called the tool box and holds a list of all the tools you can use.

gif/00000009.gif The second drop-down list box under the date buttons is called the actions box and holds a list of all the actions you can perform with the tool currently selected in the tool box. The contents of the actions box will change every time you choose a new tool from the tool box. Some tools only have one action.

gif/00000010.gif
For some tools and actions, one or two additional drop-down list boxes will appear under the date buttons. These are called the value boxes, and they list choices for the current tool action, such as depths or amounts of material. There will probably not be any value boxes showing now.

The large area under the toolbar which has a picture of a garden in it is called the garden picture. The bar at the bottom of the garden window is called the harvest panel; it shows the items you have harvested from the garden. It is probably empty now.

gif/00000011.gif

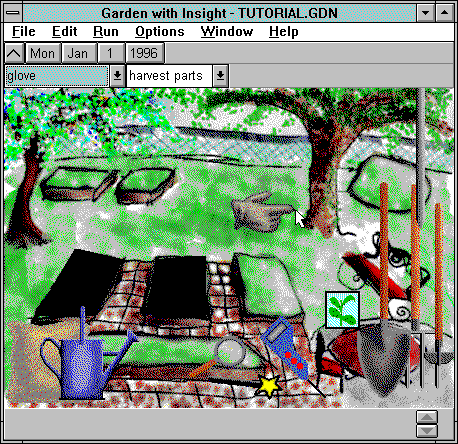

The garden window showing the tutorial garden just after opening

Tutorial index Next
